Product Introduction

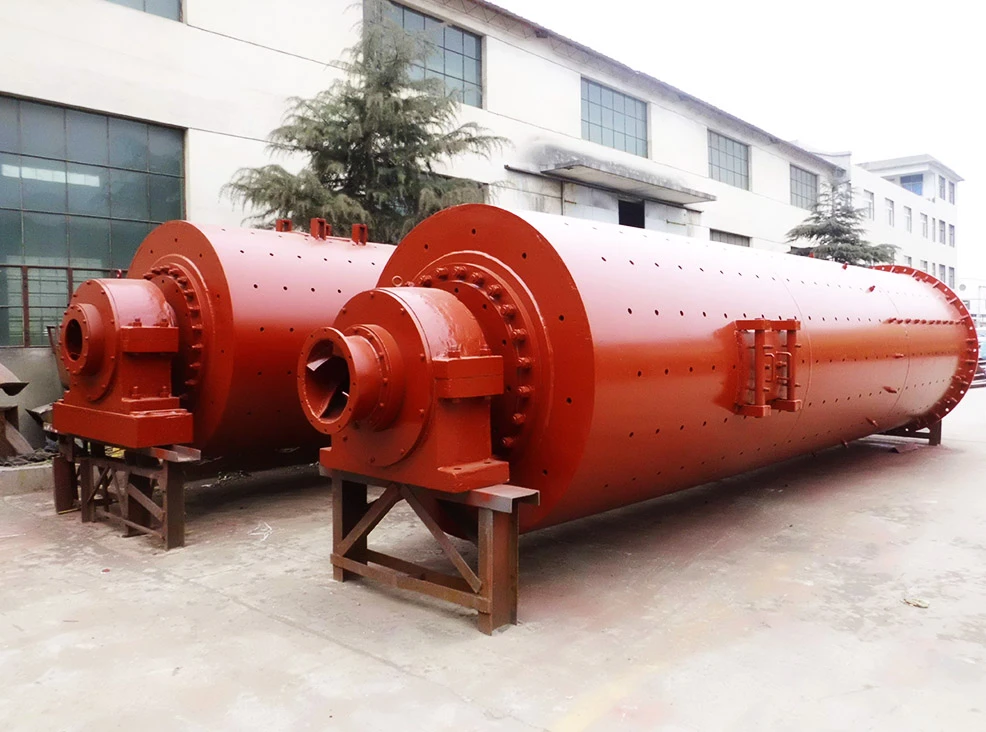

The Cement Tube Mill is a key grinding system for cement clinker, gypsum, slag, and blended cement materials. Designed for continuous industrial operation, it is widely used in cement plants, grinding stations, and mineral processing applications.
Technical parameters:
|
Model |
diameter (mm) |
length(mm) |
rotate speed (r/min) |
production capacity (t/h) |
motor power (kW) |
weight |
|
MX2295 |
2200 |
9500 |
21.4 |
14-15 |
475 |
68.2 |
|
MX22110 |
2200 |
11000 |
21.4 |
15.1-16.1 |
570 |
85.6 |
|
MX24110 |
2400 |
11000 |
21.68 |
20.6-22.7 |
630 |
108 |
|
MX24130 |
2400 |
13000 |
19.4 |
21.6-23.8 |
800 |
121 |
|
MX26130 |
2600 |
13000 |
19.7 |
24.6-27.1 |
1000 |
169.8 |
|
MX3090 |
3000 |
9000 |
18.7 |
26.6-28.5 |
1000 |
161 |
|
MX30110 |
3000 |
11000 |
18.7 |
28.6-32.8 |
1250 |
183.5 |
|
MX30130 |
3000 |
13000 |
18.7 |
33-36 |
1250 |
199.5 |
|
MX32120 |
3200 |
12000 |
17.8 |
31.8-38.2 |
1400 |
213 |
Performance characteristics
- Two-compartment cement grinding structure.
- Open-circuit and closed-circuit grinding system configuration.
- Welded steel mill shell construction.
- Coarse and fine grinding chamber configuration.
- High manganese steel liner plates and wear-resistant internal components.
- Edge drive transmission with girth gear and pinion assembly.
- Industrial motor and reducer drive assembly.
- Dry-process cement grinding configuration.
Manufacturing and Quality Control
Manufacturing Processes:
- Steel plate processing
- Precision machining
- Gear hobbing
- Welding inspection
- Dynamic balancing
- Assembly inspection
Quality Control Procedures:
- Raw material inspection
- Dimensional verification
- Gear inspection
- Trial operation testing
- Final equipment inspection
FAQ
Q: What materials can be processed in a cement tube mill?
A: The equipment is suitable for cement clinker, gypsum, slag, limestone, fly ash, and other grindable industrial materials.
Q: Can the cement tube mill operate in closed-circuit systems?
A: The cement tube mill can be integrated with powder separators for a closed-circuit grinding configuration.
Q: Is the tube mill suitable for continuous production?
A: The equipment is designed for a continuous dry-process cement-grinding operation.
Q: Can the equipment be customized?
A: Yes. The cylinder size, motor configuration, lining material, and grinding system can be customized according to project requirements.
